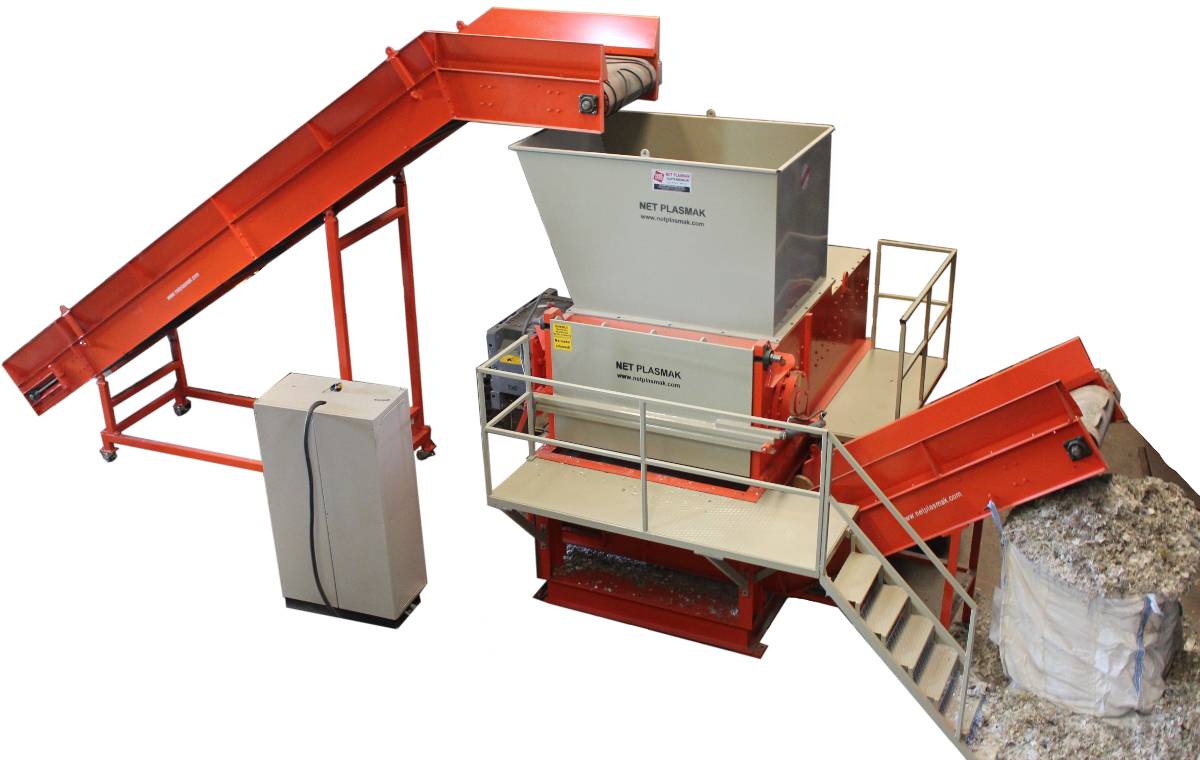

Single Shaft Shredders

Single shaft shredders are suitable to process waste materials which cannot be cut by using other types of size reduction machines.
Waste materials which is very large in size or resistant to cutting action of other types of crushers and shredders can be recycled with single shaft shredders.
Small sized rotating blades of single shaft shredders tear a small particle of material in each pass.
By this way hard to process material sizes can be reduced easily and effectively.
They are constructed very strong to last longer.
Single shaft shredders are equipped with sieves. By changing with proper hole sized sieves, output material particle size can be determined.

State of the art rotorCan shred a wide range of material

Shredder rotor processing

Rotating Blades InterchangeableThanks To Special Design Blade Holder

Shredder blade holder

Videos

TECHNICAL DETAILS

Specifications

Model No.

NP-SH800

NP-SH1000

NP-SH1200

NP-SH1500

NP-SH2000

Length of Rotor (mm)

800

1000

1200

1500

2000

Rotor Diameter Ø (mm)

450

600

600

600

600

Rotor Rpm.

80 - 120

80 - 120

80 - 120

80 - 120

80 - 120

Weight (kg)

7800

10200

12000

15500

18500

Motor power (kW)

55/75

90/110

110/132

160/185

200/250

Number of blades (pcs.)

80

100

120

150

200

Shredding chamber (mm.)

1150x700

1350x900

1550x1100

1750x1400

2100x1900

Expert in shredding technology
